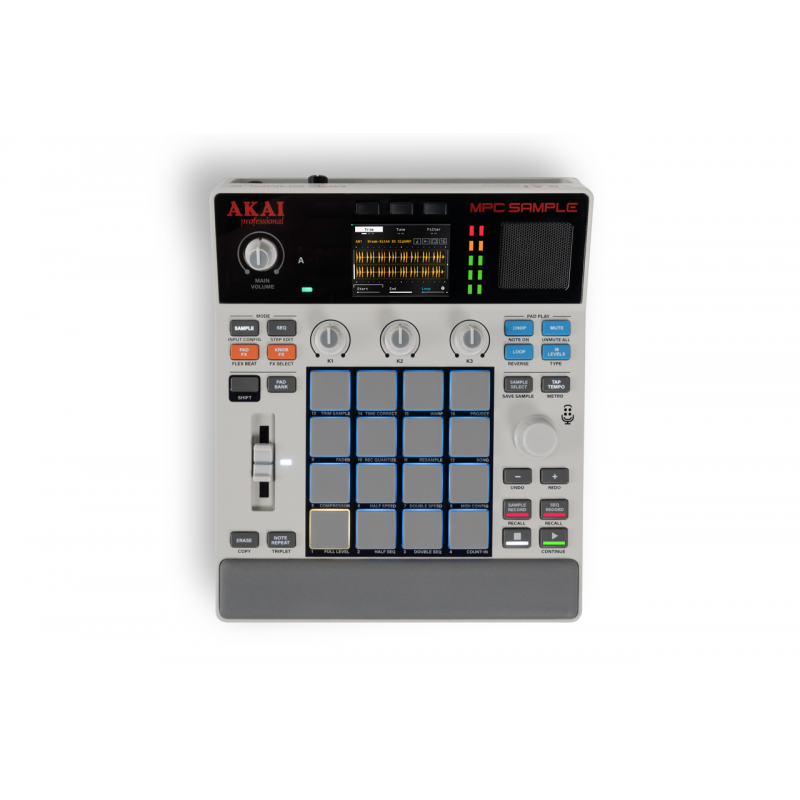

AKAI Professional MPC SAMPLE

Features

· Most portable standalone compact MPC

· 16 RGB backlit MPC pads with poly aftertouch in a smaller format

· Built-in speaker

· Internal microphone

· USB-C powered with internal rechargeable battery (5 hours)

· Onboard sequencer

· 2 GB RAM, 8 GB storage (internal eMMC)

· Over 100 factory kits

· Internal disk-streaming sample engine (fast sample playback)

· 2.4" full-color display

· 3 real-time control/effects knobs

· 4 internal effects processors with dedicated knob control

· 60 onboard effect types

· New master compressor with retro color

· Simplified button set for fast, one-touch workflow

· Instant Sample Chop Mode

· Real-Time Timestretch/RePitch

· Internal Resampling with FX

Rechargeable lithium-ion battery (5 hours)

· Legacy MPC parameter slider

· microSD card storage for user samples

· Smart Device Sampling via USB-C

· SD Card Mac/PC File Transfer via USB-C

· USB-C Audio/Midi Connectivity

· Smart device sampling via USB-C

· Record Gain knob

· Comprehensive rear I/O:

o Stereo In/Out - 1/4" TRS line-level

o Headphones - 1/8" TRS

o MIDI In/Out (will require 1/8" to MIDI DIN adapter which is not included with product)

o Sync Out

HARDWARE AND I/O

· STORAGE CAPACITY: 8GB internal (*Including ~2GB factory data), microSD expansion

· RAM: 2GB

· PADS: 16 RGB-lit velocity-sensitive MPC Pads with aftertouch

· DISPLAY: Full-color LCD with high-resolution waveform editing

· I/O: INPUT: 2x 1/4-inch TRS (AUDIO IN) mic/line; OUTPUT: 2x 1/4-inch TRS (AUDIO OUT), +9dBu/2.2Vrms, 1x 1/8-inch TRS (HEADPHONES); MIDI: 1/8-inch TRS In/Out (with 'midi-through' capability); SYNC OUT: 1/8-inch TRS CV (with configurable sync rates); USB Type C (power and data)

· MIC/SPEAKER: Built-in mic and 3-watt speaker for portable standalone recording and monitoring

· USB CAPABILITIES: Power, Audio In/Out Device, Midi In/Out Device, SD Card Access (file transfer to/from computer)

· SUPPORTED POWER SUPPLY: USB-C

· BATTERY: Lithium-Ion battery (USB rechargeable), ~5h of continuous playback

· EXTERNAL STORAGE: microSD card

· DIMENSIONS: 23.6(L) x 19.4(W) x 5.0(H) cm

FORMAT AND SUPPORT

· POLYPHONY: 32 stereo voices

· DISK STREAMING: Fast onboard disk streaming (up to 32 voices)

· RECORDABLE DATA: 128 samples/128 sequences (16 samples x 8 banks per project, 16 sequences x 8 banks per project), no project limit

· MAXIMUM SAMPLING TIME: 20 minutes per sample

· RECALL RECORDING: 30 seconds audio, pad performance record to sequence

· IMPORT FORMAT: .wav, .mp3, .aif/.aiff, .snd, .s1s, .s3s, .flac, .ogg

· PROCESSING SAMPLING FREQUENCY: 44.1k / 32-bit float

· SUPPORTED SAMPLING FREQUENCIES: File import: 24-bit or 16-bit, 44.1k, 48k, 96k; Recording: 24-bit 44.1k

KEY SOFTWARE FEATURES

· SEQUENCER: MPC Sequencer with Real-Time Swing, 960 pulses per quarter note

· SAMPLING: Fast sample-to-pad workflow from Mic, Audio In, USB (Mac/Win/iOS/Android), Resample; Threshold-controlled sampling; Fixed-length sampling for accurate loops

· RECORD: Classic MPC Note repeat, “Sequence Recall” (midi retrospective record), “Sample Recall”

· EFFECTS: 60 different FX across Pad FX, Knob FX, FlexBeat, Color-Compressor

· EFFECTS ROUTES: Main Output, Input, Per-Pad; Internal (Main Output, Knob FX per-pad); Real-time processing of External Inputs; Input record Knob FX

· ADVANCED SAMPLE EDITING: Chop mode, lazy-chopping, auto-snapping, real-time looping, warping, and Re-Pitch

· FAST WORKFLOW: Fast one-touch functionality for intuitive sampling, recording and performance

· LEGACY FADER CONTROL: Assignable fader for customizable controls over pad parameters

· SONG MODE: Easy arrangement of songs and export

· MPC3 SUPPORT: MPC Sample projects can be loaded in MPC3 to continue production in-the-box

OTHER

· ACCESSORIES: USB-C cable
