Overview
Yamaha has used its knowledge of both IT and pro audio to provide "SWR2100P series" simple L2 switch that has been optimized for networked audio installations. The switch can take advantage of "Yamaha LAN Monitor" a dedicated Windows application that provides 'network visibility' for comprehensive monitoring and control.

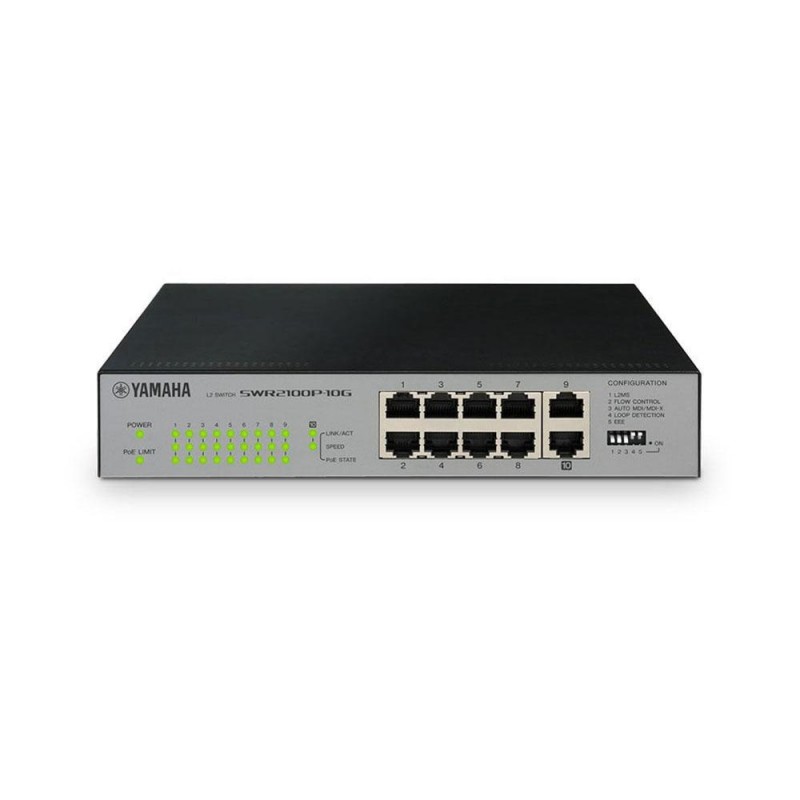

The SWR2100P series network switch equipped with ten RJ45 ports.
Features:
Supplies power to PoE-enabled Dante devices on the network
The "SWR2100P series" which are simple L2 switches can supply power as well as audio and control signals to a PoE-compliant Dante device such as the paging station microphone "PGM1" through just one Ethernet cable. Since the power supply and the network wiring can be combined, the number of cables being used can be reduced, and the connection distance can be extended, so the degree of freedom of Dante device installation is increased and construction flexibility is further improved.
Comprehensive Monitoring
Systems built around the SWR2100P-5G or SWR2100P-10G L2 switches allow comprehensive network monitoring from the dedicated Yamaha LAN Monitor software application, with PoE power status monitoring and ON/OFF switching capability.
Complete Network Overview
Understanding how multiple switches installed in different locations are connected, plus how network devices are connected to those switches, can be a difficult, time-consuming task. The Yamaha LAN Monitor makes overall network topology clearly visible, giving the user a comprehensive overview of how multiple switches and Dante network devices are interconnected. Simply connect a Windows PC to the nearest SWR2100P series switch and launch the Yamaha LAN Monitor software.
Snapshot Function Makes Troubleshooting Easy
You can take a "snapshot" of the network status when set up as required. The software can then automatically keep track of the settings and alert you to any changes. You could take a snapshot of the network, and then you would be alerted if a cable is disconnected, if a device is turned off, or if a wrong connection is made prior to the performance, for example.
Enhanced Device ID with Icons, Labels and Comments
Identifying devices connected to a switch by only their IP or MAC address is a difficult and error-prone approach. Connected Dante devices are identified by a Dante icon as well as a device ID previously set up via the Dante Controller software. You can also enter additional info, such as the location of the device, in the Label and Comment fields.
Collectively monitor and remotely restart devices distributed over a wide area
If the monitoring device does not respond to a Ping, it judges that a fault has occurred and automatically stops the PoE power supply to that device and then resumes it. This restarts the monitoring equipment and attempts recovery. By collectively managing the status of the devices distributed over a wide area, it can ensure that equipment management can operate far more smoothly.
Specifications
| LAN port | Standard | IEEE802.3 (10BASE-T/100BASE-TX/1000BASE-T) |
|---|---|---|
| Number of ports | 10 ports | |
| Ports available for PoE power supply | 9 ports (port 1–9) | |
| PoE standards | IEEE 802.3at | |
| Power supply system | Alternative A | |
| Maximum power supply | Per port | 30W (Varies depending on the power consumption class of each connected device.) |
| All ports | 70W | |
| Compatible PoE powered devices | PoE powered devices that comply IEEE 802.3af standards or IEEE 802.3at standards | |
| Switches | CONFIGURATION switches for modifying the settings (L2MS switch, Flow control switch, Auto MIDI/MIDI-X switch, Loop detection switch, energy save mode switch) | |
| Indicators | POWER, PoE LIMIT, LINK/ACT, SPEED, PoE STATE (x31) | |
| Operating environment | Ambient temperature: 0 to 40 °C, Ambient humidity: 15 to 80% (no condensation) | |
| Storage environment | Ambient temperature: -20 to 50 °C, Ambient humidity: 10 to 90% (no condensation) | |
| Power supply voltage, frequency | AC100 V to 240 V, 50 Hz/60 Hz | |
| Power consumption | 90 W | |
| Dimensions | W | 220 mm (8.66 in) |
| H | 40.5 mm (1.6 in) | |
| D | 250 mm (9.8 in) | |
| Weight | 1.8 kg (4 lbs) | |
| Accessories | Owner's Manual; power cord; power cord clamp; feet Controls | |
