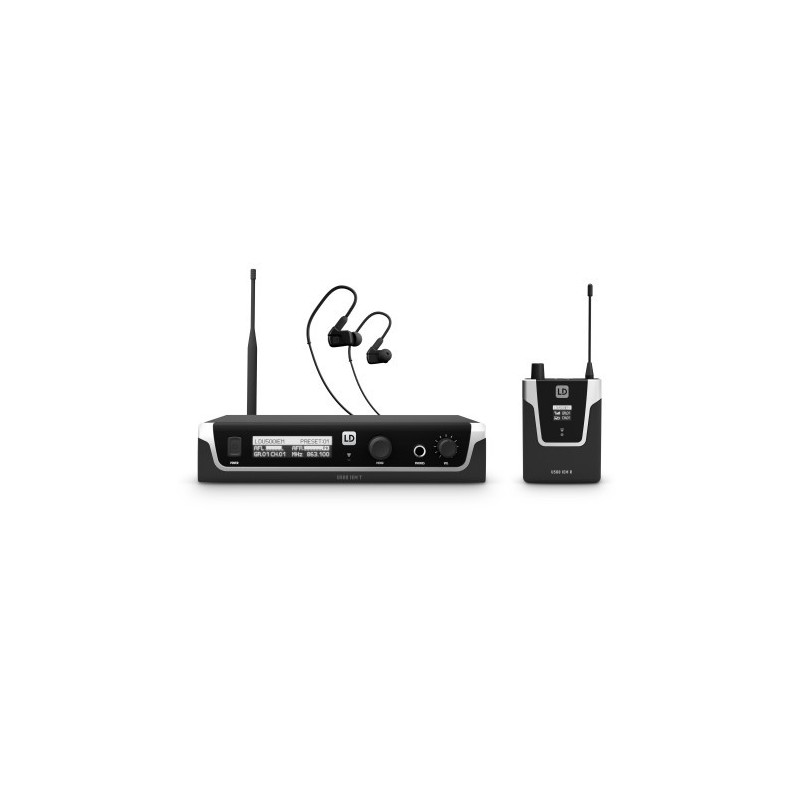

LD Systems U508 IEM HP

Reliable in-ear monitoring with more than 100 m range

96 available channels

2, 10 or 30 mW ERP selectable transmission power

Convenient infrared frequency syncing

Individual user name assignment and memory for 10 custom presets

Extended frequency respons

3-band EQ with parametric mids

Switchable limiter

Stereo, focus and mono modes of operation

High-contrast OLED display

Transmitter with direct monitoring headphone output

Bodypack receiver with three selectable squelch levels

10 h of bodypack receiver operation on two AA batteries

Simultaneous operation of up to 12 systems

U500® IEM transmitter compatible with U300® IEM bodypacks

Description

Move freely on stage while the perfect monitor mix is delivered directly to your ears: the amazing performance and reliability of the U500® In-Ear Monitoring Systems will surpass your expectations for certain. Designed with the pro user in mind, they feature advanced technology, contemporary looks and straightforward operation.

U500® In-Ear Systems provide a selection of 96 channels and 2, 10 or 30 mW RF output power for a transmission range greater than 100 m. For quick and trouble-free setup, they allow for convenient infrared synchronisation of transmitter and receiver. U500® In-Ears sport high-contrast OLED displays and allow for individual user name assignment. In addition, you can save 10 custom presets.

To deliver pristine, precise audio U500® In-Ear Monitoring Systems include a 3-band EQ with parametric mids, a switchable limiter and a squelch circuit. They offer a choice of stereo or mono operation and a direct monitoring headphone output at the transmitter. They offer a choice of stereo or mono operation and a direct monitoring headphone output at the transmitter. With a signal-to-noise ratio greater than 95 dB and less than 0,3% THD, the U500® In-Ear's noise floor is exceptionally low.

Drawing little current only, the U500® Bodypack Receiver operates up to 10 hours on two AA batteries. A volume control allows convenient in-performance monitoring level adjustment. Three selectable squelch levels ensure optimum performance at all times.

U500® In-Ear Monitoring Systems are available for operation in five frequency ranges. The 470 - 490 MHz, 514 - 542 MHz, 584 - 608 MHz and 655 - 679 MHz bands permit running up to 12 systems simultaneously. In the 823 - 832 MHz + 863 - 865 MHz range six systems can be operated at the same time providing wireless monitoring for your entire band.

Specifications

Product type In-ear Monitoring

Type Set

Transmission frequency range 823 - 832 MHz , 863 - 865 MHz

Weight 0,755 kg

LDIEHP2 - LD Systems U508 IEM HP Professional In-Ear Headphones

Product type Headphones

Type Stereo-In-Ear Headphones

Converter principle Dynamic

Impedance 32 Ohm(s)

Connection type 3.5 mm TRS

Cable length 1.55 m

Frequency response 20 - 18000 Hz

Weight 0,022 kg

Accessories (included) Transport case

LDU508IEMT - LD Systems U508 IEM HP Transmitter

Product type In-ear Monitoring Accessories

Type Transmitters

Channels 12

Modes of operation mono/stereo

Transmission method FM, mono/stereo

Rated HF output power 30 mW

Frequency response 40 - 16000 Hz

Total Harmonic Distortion (THD) 0.3 %

Dynamic range 88 dB

Controls volume headphones

Inputs 2

Input connectors XLR (balanced)

Indicators Multifunctional OLED-Display

Input impedance (kOhms) 12 kOhm

Operating voltage 12 - 18 V DC

Antenna connector BNC

Width 212 mm

Height 43 mm

Depth 123 mm

Weight 0,66 kg

Accessories (included) power adapter

LDU508IEMR - LD Systems U508 IEM HP Receiver

Type Receivers

Audio output 3.5 mm TRS

Max. audio output level 80 mW @ 33 Ohm mW

Controls volume

Indicators RF (LED)

Operating voltage 2 x 1.5 V AA

Operating time < 10 Std.

Width 64 mm

Height 100 mm

Depth 24 mm

Weight 0,095 kg

Accessories (included) Antenna

Features battery status LED
