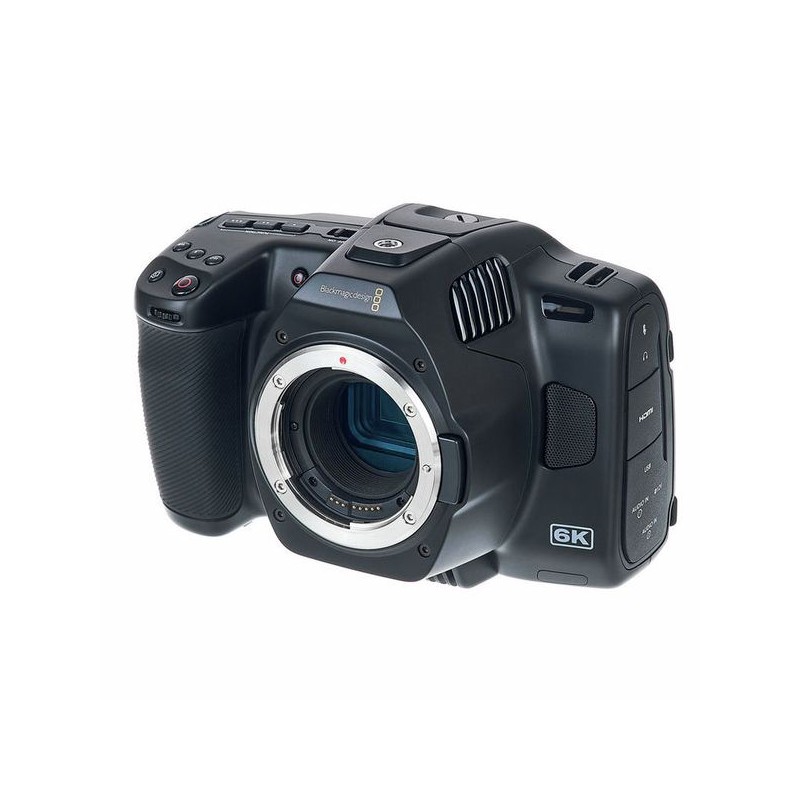

Blackmagic Design Pocket Cinema Camera 6K Pro

• Dual native ISO and an EF lens mount
• Allows direct recording to USB-C drives
• Features a customisable HDR touchscreen, built-in ND filters and a larger battery for longer battery life
• Can be upgraded with an optional OLED viewfinder (available from Art.514398, not included)
• Effective sensor size: 23.10mm x 12.99mm (Super 35)
• Lens mount: active EF lens mount
• Iris control: iris, focus and zoom on supported lenses
• Dynamic range: 13 stops
• Dual native ISO: 400 and 3200
• Resolutions: 6144 x 3456 (6K) up to 50 fps / 6144 x 2560 (6K 2.4:1) up to 60 fps / 5744 x 3024 (5.7K 17: 9) up to 60 fps / 4096 x 2160 (4K DCI) up to 60 fps / 3840 x 2160 (Ultra HD) up to 60 fps / 3728 x 3104 (3.7K 6:5 anamorphic) up to 60 fps / 2868 x 1512 (2.8K 17:9) up to 120 fps / 1920 x 1080 (HD) up to 120 fps
• Frame rates: maximum sensor frame rate depends on selected resolution and codec
• Supported project frame rates: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps
• Supported off-speed frame rates: up to 60 fps in 6K 2.4:1 / 120 fps in 2.8K 17:9 and 1080HD
• Four built-in ND filters
• Autofocus available when using compatible lenses
• Iris wheel and touchscreen slider for manual adjustments of aperture of electronically controllable lenses / Iris button for instant automatic aperture adjustments of compatible lenses
• Screen dimensions: 5" with 1920 x 1080 resolution
• Screen brightness: 1500 nits
• Screen type: LCD with capacitive touch screen
• Metadata support: Automatic lens data transfer of electronic EF lenses / Automatic storage of camera settings and film table data such as project, scene number, take and special notes / 3D LUT embeddable in Blackmagic RAW file metadata
• @Controls: Touch screen menus on 5" screen / Power button / 1 record button / Freeze button / Scroll wheel with push button integrated in handle / ISO button / White balance button / Shutter button / 3 software configurable function buttons / 2 ND filter buttons / Focus button / IRIS button / HFR button for high frame rates / 1 Zoom button / 1 Menu button / Playback button
• Time code generator: time deviation every 8 hours is less than one frame
• External control: control via iPad, Bluetooth and USB PTP camera control
• Included software: Blackmagic OS / DaVinci Resolve Studio for Mac and Windows including activation key / Blackmagic Camera Setup / Blackmagic RAW Player / Blackmagic RAW QuickLook Plugin / Blackmagic RAW SDK / Blackmagic RAW Speed Test
• Power supply: 1 external 12 V power supply (1x 2-pin lockable connector)
• Battery type: NP-F570
• Dimensions: 180 x 123 x 112 mm
• Weight: 1,24 kg
• Includes protective cap for lens mount, camera strap, 30W power supply unit with lockable connector and international adapters, NP-F570 rechargeable battery

Connections:

• Video outputs: 1 HDMI for up to 1080p/60
• Analogue audio inputs: 2x XLR mini jacks
• Switchable between phantom-powered microphone operation and line level up to +14 dBu / 1x 3.5mm stereo jack (can also be used as time code input)
• Analogue audio outputs: 1x 3.5 mm headphone jack
• Computer interface: USB type C for recording to external hard disks
• PTP camera control and software updates
• Built-in stereo microphone
• Built-in loudspeaker

Standards:

• HD video standards: 1080p/23.98 / 1080p/24 / 1080p/25 / 1080p/29.97 / 1080p/30 / 1080p/50 / 1080p/59.94 / 1080p/60
• Ultra HD video standards: 2160p/23.98 / 2160p/24 / 2160p/25 / 2160p/29.97 / 2160p/30 / 2160p/50 / 2160p/59.94 / 2160p/60
• 4K DCI standards: 4KDCIp/23.98 / 4KDCIp/24 / 4KDCIp/25 /
• 4KDCIp/29.97 / 4KDCIp/30 / 4KDCIp/50 / 4KDCIp/59.94 / 4KDCIp/60

Media:

• Storage media: 1x CFast card slot /1x SD-UHS-II card slot / 1x USB-C 3.1 expansion port for external media for recording in Blackmagic RAW and ProRes.
• Storage media format: formats media in ExFAT (Windows/Mac) or HFS+ (Mac)

Supported codecs:

• Blackmagic RAW Constant Bitrate 3:1
• Blackmagic RAW Constant Bitrate 5:1
• Blackmagic RAW Constant Bitrate 8:1
• Blackmagic RAW Constant Bitrate 12:1
• Blackmagic RAW Constant Quality Q0
• Blackmagic RAW Constant Quality Q1
• Blackmagic RAW Constant Quality Q3
• Blackmagic RAW Constant Quality Q5
• ProRes 422 HQ QuickTime
• ProRes 422 QuickTime
• ProRes 422 LT QuickTime
• ProRes 422 Proxy QuickTime
