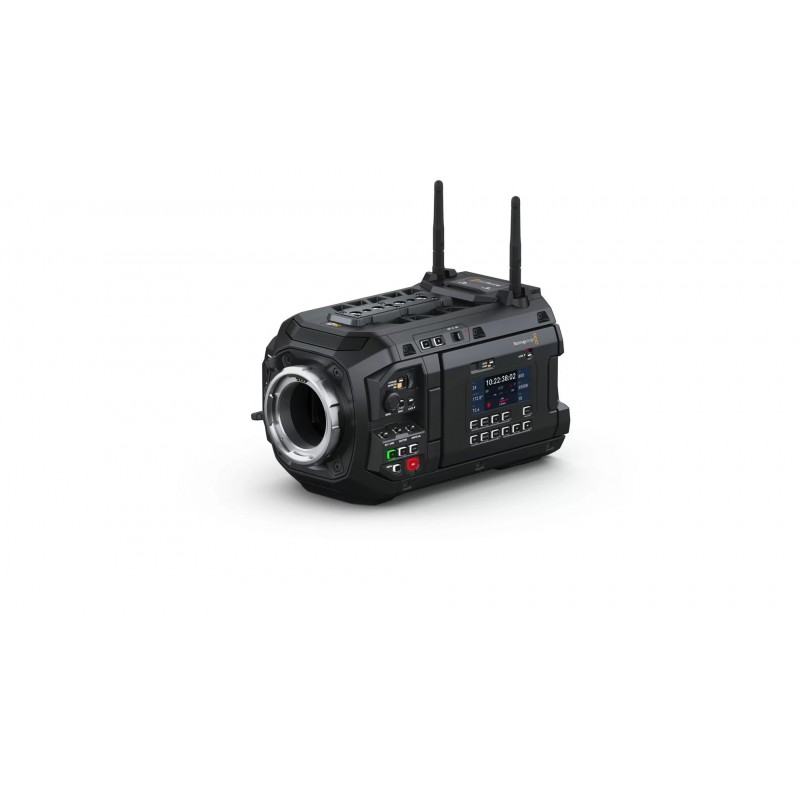

Movie cameras, Video equipment, Video cameras
| Effective Sensor Size | 50.81 mm x 23.32 mm (65mm Format) | Built in ND Filters | None |
| Pixel Pitch | 2.9 microns | Focus | Focus button turns on peaking, auto focus available using compatible lenses. |
| Lens Mount | PL mount. Interchangeable with optional URSA Cine Mounts, LPL, EF and HC. | Screens | 2 x Monitoring Screens
1 x Camera Status Screen |
| Lens Control | Lens data from compatible PL or LPL lenses and control of some PL lenses. Lens control of compatible EF lenses. | Monitoring Screen Dimensions | 5 inch |
| Dynamic Range | 16 Stops | Monitoring Screen Dimensions | 1920px x 1080px |
| Shooting Resolutions | 17,520 x 8040 (17K 2.2:1 open gate) 16,128 x 8040 (17K 2:1) 15,360 x 8040 (17K 17:9) 14,304 x 8040 (17K 16:9) 17,520 x 7296 (17K 2.4:1)12,288 x 8040 (12K 3:2) 12,288 x 6912 (12K 16:9) 12,288 x 6480 (12K 17:9) 12,288 x 5112 (12K 2.4:1) 9648 x 8040 (12K 6:5)11,680 x 5360 (8K 2.2:1 open gate) 10,752 x 5360 (8K 2:1 full height) 8192 x 5360 (8K 3:2) 8192 x 4608 (8K 16:9) 8192 x 4320 (8K 17:9) 8192 x 3408 (8K 2.4:1)5840 x 2680 (4K 2.2:1 open gate) 5376 x 2680 (4K 2:1 full height) 4096 x 2680 (4K 3:2) 4096 x 2304 (4K 16:9) 4096 x 2160 (4K 17:9) 4096 x 1704 (4K 2.4:1) |
Monitoring Screen Brightness | 1500 nits. |
| Frame Rates | Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected. | Monitoring Screen Type | LCD capacitive touchscreen |
| High Speed Frame Rates | 17K 2.2:1 open gate up to 60 fps
12K 2.4:1 up to 90fps 8K 2.2:1 open gate up to 100 fps 8K 2.4:1 up to 170 fps |
Metadata Support | Automatically populated lens data from i/Technology with compatible PL, LPL lenses and electronic EF and Hasselblad HC lenses when using optional EF lens mount or HC lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. |
| Iris Control | Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode. | Controls | Touchscreen menus on 5 inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 6 assignable shortcut keys on URSA Cine EVF |
| Timecode Clock | Highly accurate timecode clock. Less than 1 frame drift every 8 hours | ||
| Connections | |||
| Total Video Outputs | 2 | USB-C Monitor Outputs | 2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors. |
| SDI Rates | 1.5G, 3G, 6G, 12G | Reference Inputs | Tri-Sync/Black Burst/Timecode |
| Analog Audio Inputs | 2 x XLR analog switchable between mic, line and AES audio. Phantom power support | Accessories | 1 x 7-pin Lemo ‘EXT’ for power out, serial communication, and run/stop.
1 x 3-pin Fischer ‘RS’ for power out and run/stop.
|
| Analog Audio Outputs | 1 x 3.5mm headphone jack | Computer Interface | 2 x USB-C side expansion ports for camera accessories.
Software updates using side USB-C closer to rear. |
| Reference Inputs | Tri-Sync/Black Burst and Timecode. | Ethernet | 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming. |
| Viewfinder | 1 x Viewfinder USB-C with video, power, camera control data and locking connector. Works with URSA Cine EVF and PYXIS Monitor. | ||
| Audio | |||
| Microphone | Integrated stereo microphone. | Built in Speaker | 1 x mono speaker |
| Media | |||
| Media | 1 x Blackmagic Media Module | Media Format | Blackmagic |
| Supported Codecs | |||
| Codecs | Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Bitrate 18:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5H.264 Proxy in 1920 x 1080, 8-bit 4:2:0 |
||
| Control | |||
| External Control | Blackmagic URSA Cine EVF can trigger record plus camera functions assigned to the VF1, VF2, VF3, Zoom, Exp and Record buttons. External Camera Control supported using REST API over Ethernet, WiFi or serial communication via the 7-pin Lemo connector. Run / Stop supported via 3-pin Fischer and 7-pin Lemo connector. Blackmagic iPad control and Bluetooth control supported. Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling camera and compatible lenses. | ||
| Storage Features | |||
| Storage Type | 1 x Blackmagic Media Module 8TB | ||
| Power Requirements | |||
| Power Supply | +24V DC external power supply 100 – 240 AC 50/60Hz compatible with IEC C14 socket.
Molex connector for rear battery plate. |
Power output | 1 x 7-pin connector with +24V DC power output when camera is powered by +24V DC batteries or power supply.
1 x 3-pin Fischer with +24V DC power output when camera is powered by +24V DC batteries or power supply. B-Mount battery plate including 2-pin connector with +12V regulated output from camera. |
| Power Input | 1 x 8 pin Lemo compatible socket for external power or battery use.
B-Mount battery plate. |
||
| Accessories | |||
| Optional Accessories | Blackmagic URSA Cine EVF
Blackmagic PYXIS Monitor Blackmagic PYXIS Monitor Kit Blackmagic PYXIS Monitor EVF Kit Blackmagic URSA Cine Mount PL Blackmagic URSA Cine Mount EF (for limited shooting formats) Blackmagic URSA Cine Mount HC |
Blackmagic URSA Cine Mount Shims
Blackmagic URSA Cine Battery Plate B Mnt Blackmagic URSA Cine Battery Plate Gold Blackmagic URSA Cine Battery Plate VLock Blackmagic URSA Cine Baseplate 15
