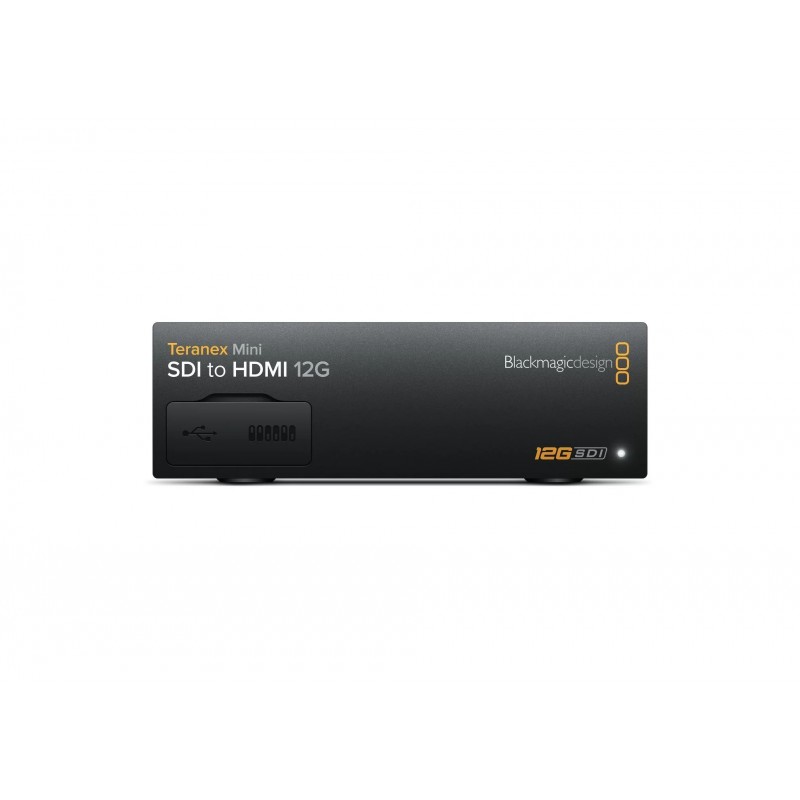

Converter from SD, HD, and Ultra HD SDI to HDMI and analog or AES/EBU audio.
SDI Video Intputs |
1 x 12G-SDI SD/HD/2K/4K auto switching |
Digital Audio Outputs |
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode output |
SDI Video Outputs |
1 x 12G-SDI loop output |
Embedded Audio Support |
8 channels |
HDMI Video Outputs |
1 x HDMI 2.0 type A connector with support for 2160p60 |
Multi Rate Support |
270MB, 1.5G, 3G, 6G and 12G |
Analog Audio Outputs |
2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Timecode output |
Updates and Configuration |
USB or Ethernet |
Reclocking |
Yes | ||
SDI Input Standards |
|||
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 |
HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
SDI Video Rates |
SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI |
2K Video Standards |
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI |
SDI Video Sampling |
4:2:2 and 4:4:4 |
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
SDI Audio Sampling |
Television standard sample rate of 48 kHz and 24-bit |
4K Video Standards |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI |
SDI Color Precision |
4:2:2 and 4:4:4 |
SDI Color Space |
YUV and RGB. 33 point LUTs can be loaded via Teranex Utility. | ||
HDMI Output Standards |
|||
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
4K Video Standards |
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p |
HDMI Color Space |
REC 601, REC 709 | ||
HDMI Color Precision |
YUV 4:2:2 in HD, 2K and 4K. 33 point LUT can be loaded via the Teranex Utility | ||
Power Requirements |
|||
Power Supply |
1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 – 240V AC Input |
Power Consumption
|
16 Watts |
Power Over Ethernet |
Can be powered via 48V DC using PoE+ (power over ethernet) |
Operational Voltage Range |
100-200V DC |
