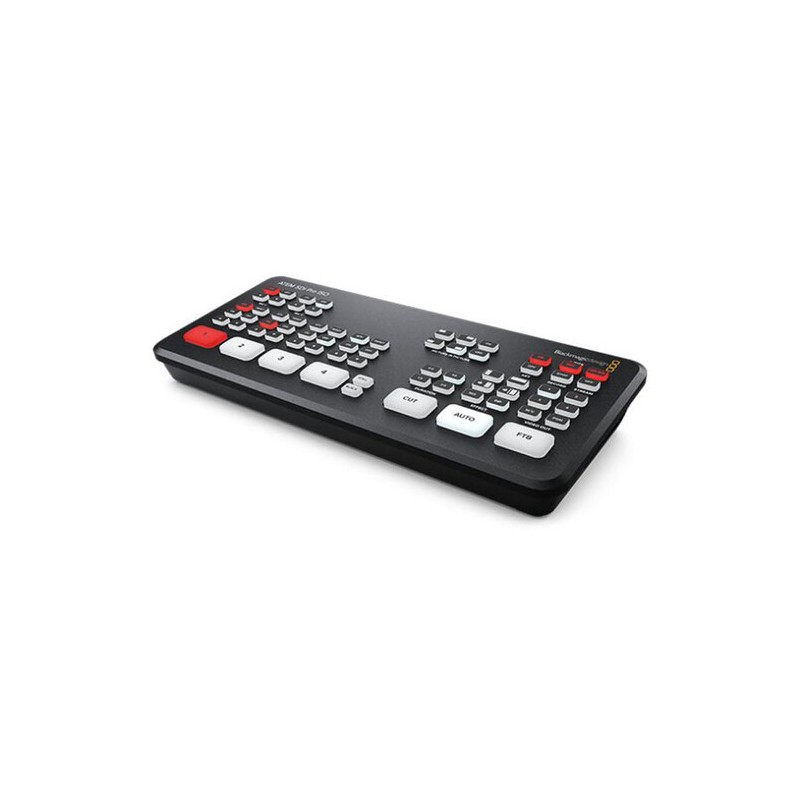

Blackmagic Design ATEM SDI Pro ISO

• Provides, in addition to the basic functions of the ATEM SDI model, internal streaming and the recording of five video feeds in real-time: a clean feed plus feeds from all inputs for multicam editing!
• Due to a stored DaVinci Resolve project, you can open your live production and edit it, remix the audio and colour correct it.
• Dimensions: 238 x 119 x 35 mm
• Weight: 680 g

Basic functions:

• Four scalable SDI inputs
• One USB webcam output
• Two SDI outputs
• One Fairlight audio mixer with EQ and dynamics tools
• A DVE processor for picture-in-picture and transition effects
• A green screen chromakeyer
• A 20-frame media pool for titles
• Incl. ATEM Software Control

Connections:

• SDI video inputs: 4x 3G-SDI, 10-bit HD, switchable (2 embedded audio channels).
• Total video outputs: 3
• Aux outputs in total: 2
• Audio inputs: 2x 3.5mm stereo mini jacks
• Video inputs with resync: On all 4 SDI inputs
• Frame rate and format converter: On all 4 SDI inputs
• SDI programme outputs: 2
• Ethernet: supports 10/100BaseT for software control, software updates and direct connection or network connection of a control panel
• Computer interface: 1 USB type C 2.0 port for webcam output, software control, software updates and for connecting a control panel

Standards:

• HD video input standards: 720p/50; 720p/59.94; 720p/60; 1080p/23.98; 1080p/24; 1080p/25; 1080p/29.97; 1080p/30; 1080p/50; 1080p/59.94; 1080p/60; 1080i/50; 1080i/59.94; 1080i/60
• HD video output standards: 1080p/23.98; 1080p/24; 1080p/25; 1080p/29.97; 1080p/30; 1080p/50; 1080p/59.94; 1080p/60
• Video standards for streaming: 1080p/23.98; 1080p/24; 1080p/25; 1080p/29.97; 1080p/30; 1080p/50; 1080p/59.94; 1080p/60
• Video sampling frequency: 4:2:2 YUV
• Color accuracy: 10 bit
• Color spaces: Rec.709
• Color space conversion: Hardware based in real-time

Features:

• Upstream keyer: 1
• Downstream keyer: 1
• Advanced Chroma Keyer: 1
• Linear/Luma Keyer: 2
• Transition keyer: DVE only
• Total number of levels: 5
• Pattern generators: 1
• Colour generators: 2
• DVE with borders and shadows: 1
• Interface: Screen resolution of at least 1366 x 768
• Media Player: 1
• Channels: Fill and key signals for each media player
• Media Pool capacity for still images: 20 with fill and key signals
• Media Pool still image formats: PNG, TGA, BMP, GIF, JPEG and TIFF
• Direct streaming: supports direct live streaming via Ethernet using Real Time Messaging Protocol (RTMP) or via USB-C using a shared mobile internet connection
• Direct recording of video and audio: can be recorded directly to external media via the USB-C 3.1 Gen 1 expansion port
• Video recording: 4 SDI ISO inputs for recording H.264 MP4 files in 70 Mbps quality according to ATEM video standard with AAC audio
• 1 Programme output for recording an H.264 MP4 file in the set streaming quality and according to ATEM video standard with AAC audio
• Audio recording: 6 x 2 channels of audio input recorded in separate 24-bit 48 kHz WAV files, including 2 analogue stereo audio inputs and 4 SDI inputs with 2 channels of embedded audio
• Mixing: Programme mix recorded as DaVinci Resolve project file (.drp)
• Storage media format: Supports media formatted in ExFAT (Windows/Mac) or HFS+ (Mac) file systems
• Multiview monitoring: 1x 10 views including left or right configurable programme/preview display
• 4 SDI inputs
• Media Player
• Streaming status
• Recording status and audio level meters
• Multiview video standard: HD
• Compatible operating systems: Mac Big Sur 11.0, Mac Monterey 12.0 or higher, Windows 10 and 11
• Power supply via external 12V DC power supply with suitable plug adapters for most countries (included)
• Power consumption: 38 watts
