LD Systems U306 BPH 2

UHF diversity wireless system with FM technology

12 selectable channels

100 metre range under ideal conditions

Up to 6 systems can be used simultaneously

ASC infrared synchronisation between transmitter and receiver

Squelch with pilot tone

10-hour transmitter operating time with two AA batteries

Receiver in sturdy metal housing

Rack mounting kit included

Description

Developed in Germany, the UHF diversity wireless systems from the U300® series deliver excellent audio performance. They achieve a range of 100 metres in ideal conditions and are available in five frequency bands: 584–608 MHz, 655–679 MHz, 823–832 MHz + 863–865 MHz, 470–490 MHz or 514–542 MHz. Up to six U300® systems can be used simultaneously in each frequency band. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection between the transmitter and receiver, while a squelch with pilot tone ensures disruption-free operation.

U300® transmitters have a 10 mW output and an operating time of 10 hours on two AA batteries. The handheld microphone’s frequency response ranges from 55 Hz to 16 KHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The bodypack’s input level can be adjusted to both active and passive guitars and basses over three levels. The power switch features a handy standby mode for temporary muting. The U300® receiver is fitted with a bright LCD channel display, an LED chain for displaying audio signal strength and both two balanced XLR and two unbalanced 6.35 mm audio outputs. The audio output can also be switched to instrument level for directly connecting to guitar and bass amplifiers.

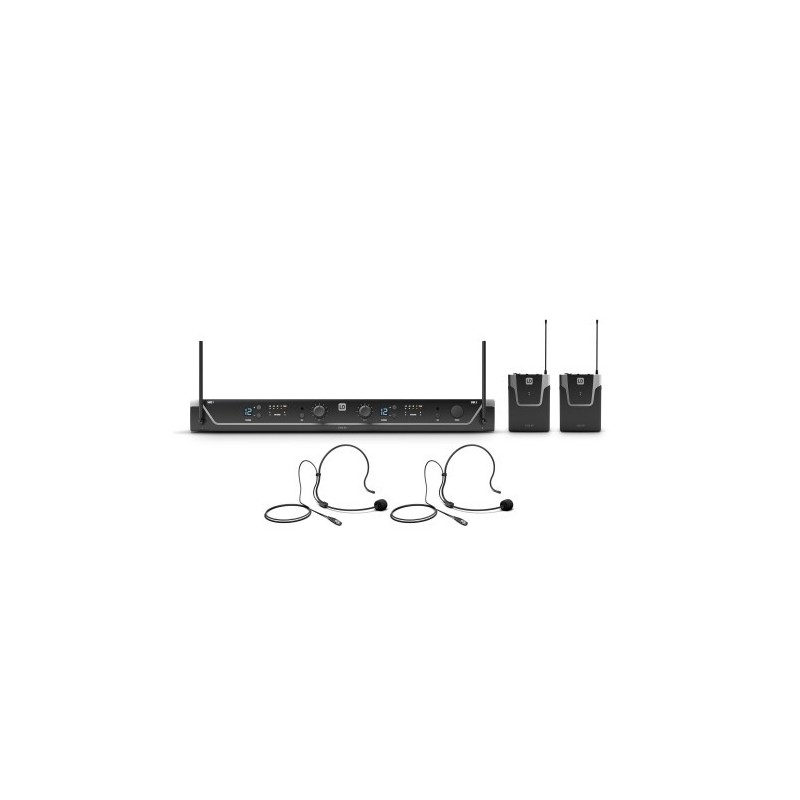

The U300® Series wireless systems have a fresh, modern look and are available with receivers and two cardioid dynamic handheld microphones (HHD2) or with two bodypacks and two headsets (BPH2). The microphone characteristic can be changed using U500®-series replaceable heads.

Specifications

Product type Wireless Microphone Systems

Type Set

Transmission frequency range 655 - 679 MHz

Weight 1,35 kg

LDU306BP - LD Systems U306 BPH 2 Bodypack transmitter

Product type Wireless Microphone System Accessories

Type Bodypack

Frequency response 25 - 16,000 Hz

Channels 12

Weight 0,085 kg

Groups 1

Inputs Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)

Signal-to-noise ratio 104 dB

Rated HF output power 10 mW

Controls Power On/Off

Operating voltage 2 x AA battery

Operating time > 10 h

Other features Pilot tone

Indicators Power LED (Power ON: green)

Width 65 mm

Height 91 mm

Depth 25 mm

LDWS100MH1 - LD Systems U306 BPH 2 Headset

Type Headsets

Frequency response 20 - 20.000 Hz

Directivity Cardioid

Weight 0,049 kg

Nominal impedance 680 Ohm(s)

Phantom power requierements 5 V

Microphone input Mini-XLR (3-pin, female)

Accessories (included) Foam windscreen

LDU306R2 - LD Systems U306 BPH 2 Dual Receiver - 655 - 679 MHz

Type Receivers

Modulation Type FM

Frequency response 35 - 16000 Hz

Weight 1,265 kg

Antenna inputs 2 x fixed

Noise reduction Squelch

Transmission optimization Pilot tone

Total Harmonic Distortion (THD) < 0.3 %

Controls Line/Instrument Level

Audio output, balanced 3 x XLR

Audio output, unbalanced switchable unbalanced output level ( Line/Instrument )

Audio mix output, balanced XLR

Audio mix output, unbalanced 6.3 mm jack

Max. output level +10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu

Indicators LC display

Operating voltage 12 V DC, 500 mA

Width 410 mm

Height 43 mm

Depth 120 mm

Accessories (included) Rack kit
