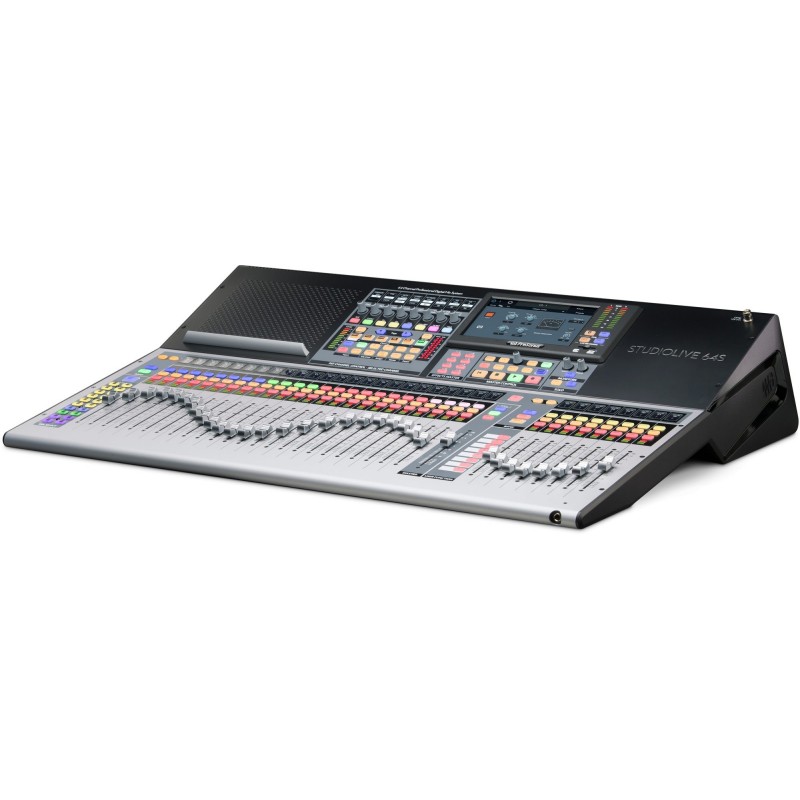

Presonus StudioLive 64S

The StudioLive 64S is a 64-channel mixer that brings the power of a large format console to small format digital mixing. Powered by the new quad-core PreSonus FLEX DSP Engine, the StudioLive 64S digital mixer is equipped with 76 mixing channels, 43 mix buses, and 526 simultaneous processors—including 8 stereo reverberation systems, and Fat Channel plug-in models on every input channel and mix bus. With 128 (64X64) channels of USB recording, 128 channels of AVB I/O, flexible routing options, and the studio-grade audio quality that made StudioLive mixers famous, the StudioLive 64S delivers a truly exceptional mixing experience that's in a class of its own.

• Powered by the new quad-core PreSonus FLEX DSP Engine to provide the most processing of any digital mixer in its class
• 76 input-channel digital mixer with 33 touch-sensitive motorized faders
  • 64 channels (individually sourced from any of the 32 local digitally controlled XMAX mic/line inputs or any AVB, USB, or SD input)
  • 2 balanced stereo aux inputs
  • 1 stereo tape input (RCA, Bluetooth, USB, AVB or SD)
  • 8 FLEX FX returns
  • 1 Talkback
• 43 mix buses
  • 32 FlexMixes (Aux, Subgroup, Matrix)
  • 8 dedicated FLEX FX buses
  • Stereo Main bus
  • Main Mono/Center bus with per-channel level send and Center Divergence
• 526 simultaneous processors
  • HPF
  • Gate / Expander
  • Compressor with Fat Channel plug-in models
  • 4-band/6-band parametric EQ with Fat Channel plug-in models
  • Limiter
  • 31-band Graphic EQ
  • 8 FLEX FX slots featuring legendary classic reverb emulations and delays
• State Space-Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
• FLEX FX multi-effects processor with 8 slots to load legendary reverb emulations and delays with 8 dedicated effects buses
• 24 DCAs to control groups of channels
• 128-channel (64x64) recording over USB
• Onboard multi-channel SD recorder (34x34) with true Virtual Soundcheck mode
• AVB Networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers and more
• User Profiles for managing multiple operators with custom permissions
• Per channel digital patching from any analog, AVB, USB, or SD Card source
• DAW Control
  • Advanced Studio One control integration
  • MCU emulation mode optimized for Logic
  • HUI emulation mode optimized for Pro Tools
• Remote control every mix function from your computer, iPad, or Android tablet with UC Surface (included)
• Put your musicians’ monitor mix under their fingers with QMix-UC (included) for iOS or Android
• Capture multitrack software included
  • Automated Virtual Soundcheck
  • Store StudioLive mix scenes with your audio
• Advanced Studio One integration (Studio One Artist Included)
  • XMAX mic preamp control from Studio One
  • Control Fat Channel parameters from Studio One mixing console

  • Computer system requirements:

    Below are the minimum computer-system requirements for UC Surface, QMix-UC, and Studio One®.

    Mac

    • macOS® 10.11 or higher (64-bit only)
    • Intel® Core™ 2 Duo processor (Intel Core i3 or faster recommended)
    • 4 GB RAM (8 GB or more recommended)

    Windows

    • Windows® 7 x64 SP1 + platform update, Windows 8.1 x64, Windows 10 x64
    • Intel Core 2 Duo (Intel Core i3 or faster recommended)
    • 4 GB RAM (8 GB or more recommended)

    Mac and Windows Systems

    • USB 2.0 port
    • Internet connection
    • Internal or external 7200 RPM storage drive highly recommended
    • 30 GB hard disk space
    • Monitor with 1366x768 resolution

    iOS

    • iOS 10 or later
    • iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation)

    Android

    • Android™ 5.0 (Lollipop) or later
    • Android smartphone (QMix-UC)
    • Android tablet (8-inch) with 1024x768 resolution (UC Surface)

    Note: The minimum system requirements may differ for DAWs other than Studio One. Please check the requirements for your DAW of choice with its manufacturer.

    Note that the speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system. Also, a more powerful system (faster processor with more RAM) will allow for lower latency (signal delay) than you might experience while monitoring audio signals.

  • Technical Specifications

    Mi crophone Preamplifier
    Input Type	XLR Female, balanced
    Frequency Response to Main Output (at unity gain)	20-20 kHz, ±0.5 dBu
    Input Impedance	1 kΩ
    THD to Main Output	<0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
    S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd)	94 dB
    Common Mode Rejection Ratio (1 kHz at unity gain)	65 dB
    Gain Control Range (±1 dB)	0 dB to +60 dB
    Maximum Input Level (unity gain)	+12 dBu
    Phantom Power (±2 VDC)	48 VDC, switchable per channel

    Line Inputs
    Type	¼” TRS Female, balanced
    Frequency Response to Main Output (at unity gain)	20-20 kHz, ±0.5 dBu
    Input Impedance	10 kΩ
    THD to Main Output	<0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
    S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd)	94 dB
    Maximum Input Level	+18 dBu

    Tape Inputs
    Type	RCA Female, unbalanced (stereo pair)
    Maximum Input Level	+12 dBu, ±0.5 dBu

    XLR Outputs
    Type	XLR Male, balanced
    Maximum Output Level	+24 dBu, ±0.5 dBu
    Output Impedance	100Ω

    Line Outputs
    Type	¼” TRS Female, balanced
    Maximum Output Level	+18 dBu, ±0.5 dBu
    Output Impedance	100Ω

    Tape Outputs
    Type	RCA Female, unbalanced (stereo pair)
    Maximum Output Level	+18 dBu, ±0.5 dBu
    Output Impedance	100Ω

    Headphone Output
    Type	¼” TRS Female, active stereo
    Maximum Output	100 mW/ch. @ 60Ω load
    Frequency Response	20 Hz – 20 kHz (± 0.5 dB)
    THD+N	0.01%, 1 kHz, max gain, 20 Hz BW, unwtd
    S/N Ratio	96 dB, 1 kHz, max gain, 20 Hz BW, unwtd

    System Crosstalk
    Input to Output	-90 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)
    Adjacent Channels	-87 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)

    Digital Audio and Control
    ADC Dynamic Range	115 dB (A-wtd, 48 kHz)
    DAC Dynamic Range	115 dB (A-wtd, 48 kHz)
    USB Recording Port	USB 2.0, Type-B
    Bluetooth™ Input	4.1, stereo
