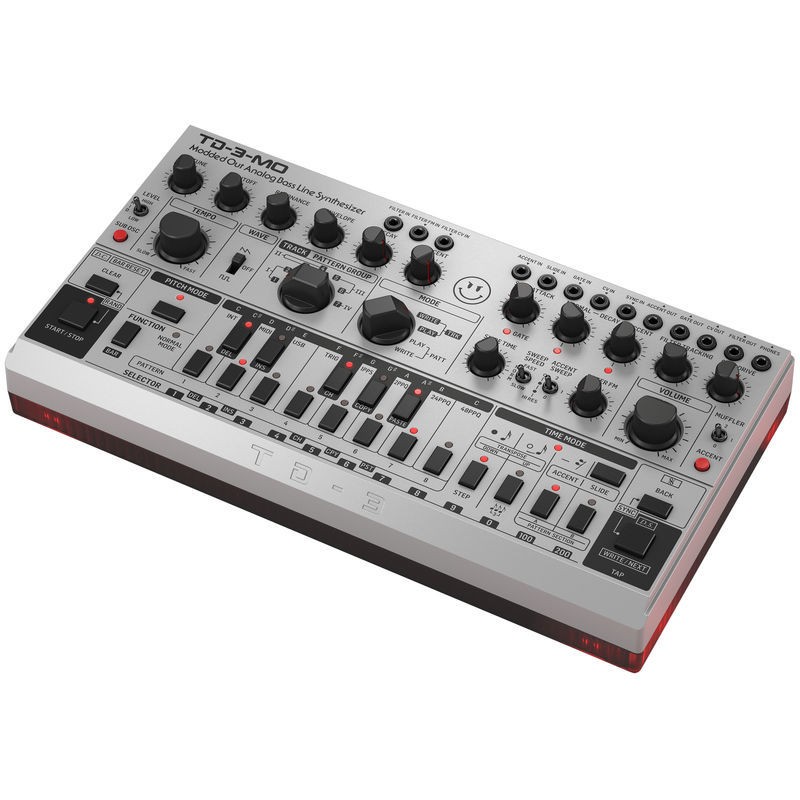

Behringer TD-3-MO-SR

Overview

• Extended version of the TD-3 with numerous new functions
• Controls available for the soft attack, normal and accent decay, filter tracking, slide time and filter FM
• Switchable sub-oscillator
• Accent sweep and sweep speed switchable in 3 steps
• Muffler (VCA soft clipping) switchable in 2 steps
• Manual Accent button
• Filter cutoff controllable via a MIDI controller
• Fully analogue signal path consisting of VCO, VCF and VCA
• VCO switchable between sawtooth and square waveforms
• 4-Pole low-pass filter with resonance
• VCF envelope intensity and envelope decay adjustable
• Accent and overdrive adjustable
• 16-Step sequencer with 250 pattern memory locations
• Poly-chaining of up to 16 units possible
• Audio input for sound processing of external sources: 3.5 mm jack
• Filter FM and filter CV inputs: 3.5 mm jack
• Inputs for Accent, Slide, Sync and CV / Gate: 3.5 mm jack
• Outputs for Accent, Filter and CV / Gate: 3.5 mm jack
• Stereo headphone output: 3.5 mm jack
• Line output: 6.3 mm jack
• A USB MIDI and a MIDI in / out
• Dimensions (H x W x D): 56 x 305 x 165 mm
• Weight: 0.8 kg
• Colour: silver
• Incl. a 9 V DC power supply unit
