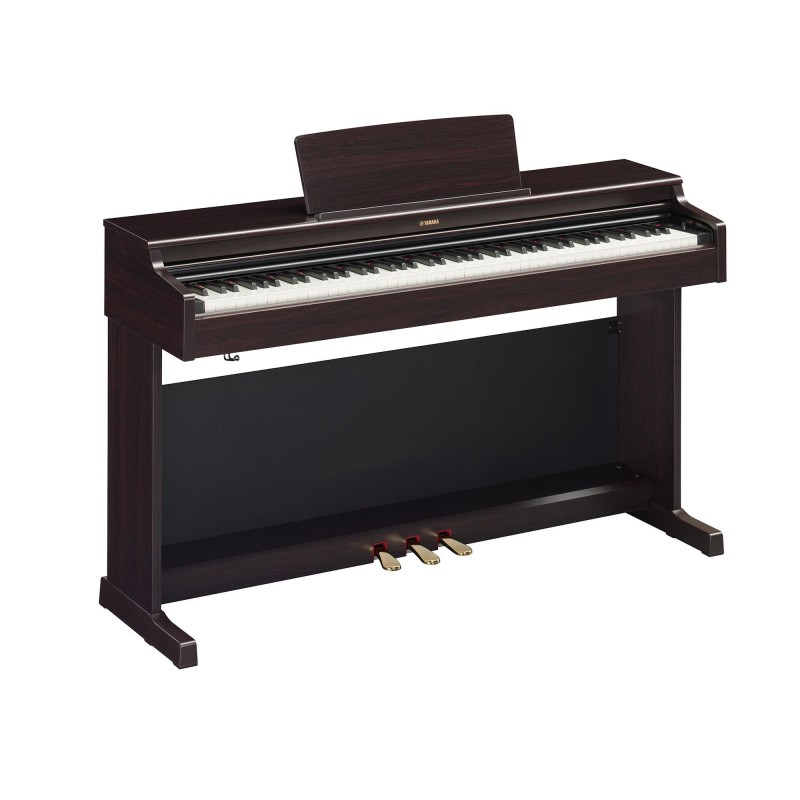

Yamaha YDP-165 R Arius Dark Rosewood

Highlights

• Keyboard: Graded Hammer 3 (GH3) keyboard with 88 keys and synthetic ebony and ivory keytops in YDP-165 & YDP-S55
• Graded Hammer Standard (GHS) keyboard with 88 keys and matte black keys in YDP-145 & YDP-S35
• Meticulously sampled from Yamaha’s flagship CFX grand piano
• 10 voices
• 192-note polyphony
• New Virtual Resonance Modeling Lite (VRM Lite)
• 2-track recording (1 Song)
• 50 Classic Preset Songs, 303 Lesson Songs
• Dual function; Duo mode
• Stereophonic Optimizer, Intelligent Acoustic Control
• USB to HOST terminal
• Headphones x 2
• Amplifiers: 20 W x 2 in YDP-165 & YDP-S55
• Speakers: 12 cm × 2
• Sliding Key Cover (YDP-165 & YDP-145) /

Feel

With an 88-key piano action, the GH3 (Graded Hammer 3) keyboard and GHS (Graded Hammer Standard) reproduce the touch of an acoustic piano, from a naturally heavy feel in the lower keys to a lighter touch in the upper octaves. The GH3 keyboard of the YDP-165 and YDP-S55 even provides a grand piano-style response and feel, allowing rapid note repetition and authentic expressive control.
Moreover, there’s a half-damper feature which authentically replicates the damper action of a grand piano, providing rich expressive variation.

One of the allures of the grand piano is the sympathetic resonance created by the vibration of the entire instrument. All ARIUS models elaborately reproduce this rich sympathetic resonance through a groundbreaking technology called Virtual Resonance Modeling Lite (VRM Lite). VRM Lite creates a richly varied sound by simulating the complex sympathetic tones created when the vibrations of the strings are propagated to the soundboard and other strings, corresponding to the timing and intensity of key playing and pedaling.

Enjoy More

Naturally, all ARIUS models have an authentic grand piano sound, but they also feature various other built-in instrument sounds, with a total of 10 Voices – including electric piano, organ, vibraphone,
and strings. All ARIUS models also have 353 built-in songs, including 50 famous classical songs, and 303 comprehensive practice exercises from famous composers, such as Beyer, Burgmüller,
Czerny, and Hanon. The instrument is also compatible with Yamaha's free Smart Pianist app – simply download the app to your smart device and connect it to the instrument.

Smart Pianist

With the Smart Pianist app, you can easily operate the various Voice functions of the instrument and use it to view scores of the built-in songs. It also features a comprehensive Piano Room function for
changing the tonal quality and resonance settings of the piano sound.

Design

While based primarily on straight lines, both YDP-165 and YDP-145 have a stylish design that incorporates elegant curves that are typical of a grand piano. The piano cabinet of the YDP-S55 and YDP-S35 have a slim depth that lets you neatly install it in any room, and makes for a chic, stylish design that effortlessly enhances your living space. Moreover, you can choose from a variety of color variations to find the one that suits your interior and personal taste.

Specification

?Size/Weight

• Width 1,357 mm [53-7/16"]
• Height 849 mm [33-27/64"] (With music restraised: 1,003 mm [39-31/64"])
• Depth 422 mm [16-5/8"]
• Weight 42.0 kg(92 lbs., 10 oz.)

Control Interface

• Number Of Keys 88
• Keyboard Type GH3 (Graded Hammer 3) keyboard with synthetic ebony and ivory keytops
• Touch Response Hard/Medium/Soft/Fixed
• Number of Pedals 3
• Half Pedal Yes (Damper)
• Functions Damper, Sostenuto, Soft

Cabinet

• Key Cover Style Folding

Voices

• Tone Generation Piano Sound Yamaha CFX
• Virtual Resonance Modeling Lite (VRM Lite) Yes
• Key-off Samples Yes
• Smooth Release Yes
• Polyphony (max.) 192
• Preset Number of Voices 10

Effects

• Reverb 4 types
• Intelligent Acoustic Control (IAC) Yes
• Stereophonic Optimizer Yes
• Functions Dual Yes
• Duo Yes

Songs MIDI

• Number of Presets - 10 Voice Demo Songs, 50 Classics, 303 Lesson Songs
• Recording Number of Songs 1 - Number of Tracks 2
• Data Capacity Approx. Approx. 150 KB/Song (approx. 11,000 notes)

Functions

• Metronome Yes
• Tempo Range 5 – 280
• Transpose -6 – 0 – +6
• Tuning 414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments)
• USB Audio
• Interface 44.1 kHz, 24 bit, stereo

Connectivity

• DC IN 16 V
• Headphones Output Standard stereo phone jack (× 2)
• USB TO HOST Yes

Sound System

• Amplifiers 20W × 2
• Speakers 12 cm × 2

Power Supply

• AC Adapter PA-300C (Output: DC 16 V, 2.4 A)
• Power Consumption 13 W (When using PA-300C AC adaptor)

Included Accessories

• Owner’s Manual
• 50 Classical Music Masterpieces (Music Book)
• AC adaptor: PA-300C, Power cord
• Online Member Product Registration
