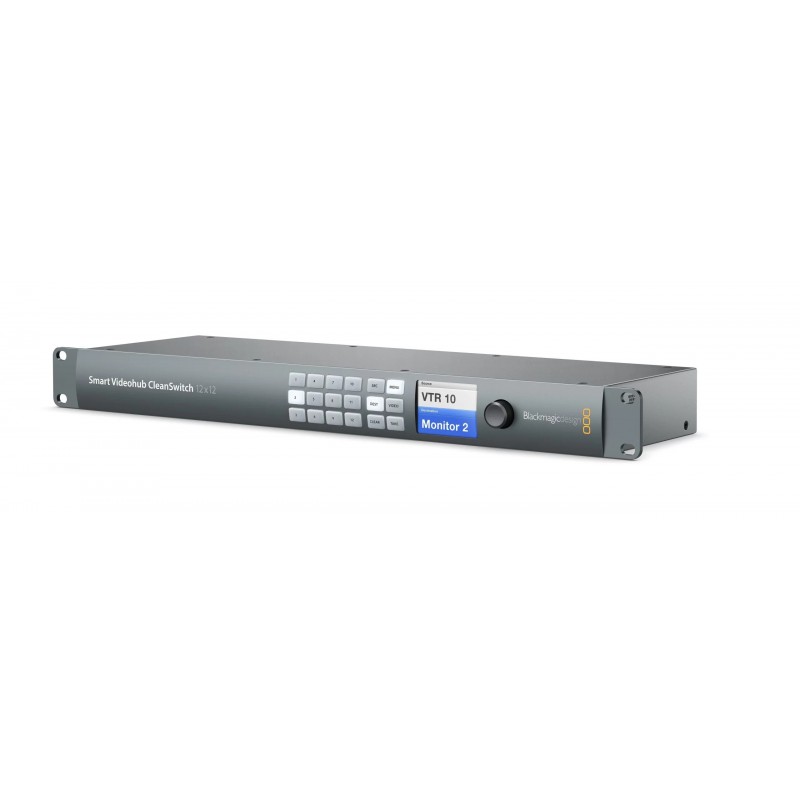

Blackmagic Smart Videohub CleanSwitch 12×12

Id 159658

Бренд Blackmagic

Рейтинг

Equipment, Live Broadcast Equipment, Video Equipment

1 677,00 €

С НДС Доставка в течение 7-21 день.

1385.95 без НДС.

Количество

Описание
Подробнее о товаре

Отзывы

Описание

SDI Video Inputs	12 x 10-bit SD-SDI, HD-SDI and 6G-SDI.	Serial Control Connection	RJ-6 RS-422.
SDI Video Outputs	12 x 10-bit SD-SDI, HD-SDI and 6G-SDI.	Multi Rate Support	Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD and SD video.
SDI Rates	3	Updates	USB
Video Input Re-Sync	On all 12 inputs for clean switch.	Front Panel Router Control	12 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet.
SDI Reclocking	On all SDI outputs	Router Configuration	Via front panel LCD or RJ45 Ethernet.
Reference Inputs	Tri-Sync or Black Burst	RS-422 Router Control	1 x input for controlling router crosspoint switching.
Control Panel Connection	Ethernet
Standards
SD Video Standards	525i59.94 NTSC, 625i50 PAL	SDI Compliance	SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B , ITU-R BT.656 and ITU-R BT.601.
HD Video Standards	720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60	SDI Video Sampling	4:2:2 and 4:4:4
2K Video Standards	2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF	SDI Audio Sampling	Automatically selects between SD-SDI, HD-SDI, and 6G-SDI on each input.
Ultra HD Video Standards	2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30	SDI Color Precision	10-bit 4:2:2 and 4:4:4
4K Video Standards	4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p	SDI Color Space	YUV or RGB.
		SDI Auto Switching	Automatically selects between SD-SDI, HD-SDI, and 6G-SDI on each input.
		SDI Metadata Support	Video payload identification ancillary data as per SMPTE 352M.
Control
Built in Control Panel	12 buttons for local control of Videohub with 6 buttons and scroll wheel for menu control. 2.2 inch color display.	External Control Panel	Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control and Blackmagic Master Control hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
		Control Panel Connection	Ethernet
Software
Software Control	Router control included free for Windows™ and Mac™	Internal Software Upgrade	Via included updater application.
Display
Displays	Built in LCD for video and menu settings.
Power Requirements
Power Supply	IEC power cable required. 100 – 240V AC input.	Power Fail Protection	Router connections preserved and restored instantly at power on.

Physical Installation	1 rack unit height
Physical Specifications	482 x 160 x 44 mm	Weight	1.88 kg
