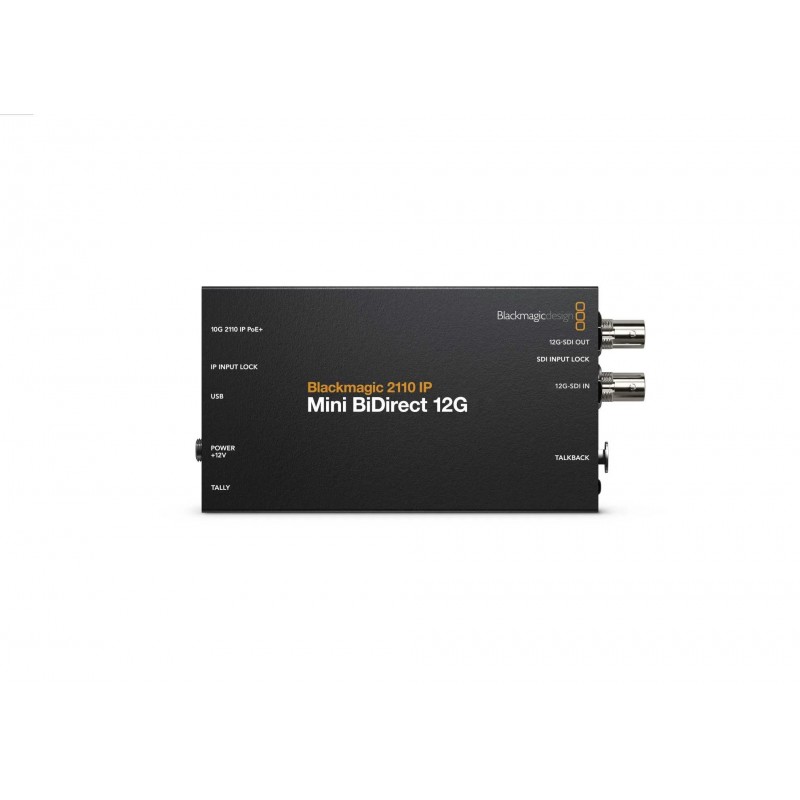

Blackmagic 2110 IP Mini BiDirect 12G

Id 159672

Бренд Blackmagic

Рейтинг

2110 IP, Converters, Video equipment

447,00 €

С НДС Доставка в течение 7-21 день.

369.42 без НДС.

Количество

Описание
Подробнее о товаре

Отзывы

Описание

Connections
SDI Video Inputs	1	SMPTE ST 2110 IP Audio Inputs	16 Ch embedded audio on ST-2110 IP video via 10G Ethernet
SDI Video Outputs	1	SMPTE ST 2110 IP Audio Outputs	16 Ch embedded audio on ST-2110 IP video via 10G Ethernet
SDI Rates	1.5G, 3G, 6G, 12G	Multi Rate Support	Auto detection of HD, Ultra HD and 4K
SMPTE ST-2110 IP Video Inputs/Outputs	1 x 10G Ethernet	Reclocking	Yes
Analog Audio Inputs	1 x 5 pin XLR Talkback.	Ethernet	1 x 10Gb/s RJ‑45 connector for SMPTE‑2110 IP video in and out
Analog Audio Outputs	1 x 5 pin XLR Talkback.	Computer Interface	1 x USB‑C for configuration and firmware updates.
SDI Audio Inputs	16 Ch embedded audio on SDI input
SDI Audio Outputs	16 Ch embedded audio on SDI output
SDI Video Standards
HD Video Standards	720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30	SDI Video Rates	SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI
Ultra HD Video Standards	2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60	SDI Color Precision	4:2:2
4K Video Standards	4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI	SDI Color Space	YUV
SDI Compliance	SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40.	SDI Auto Switching	SDI video connections are switchable between 720p, 1080i, 1080p, Ultra HD and 4K DCI.
IP Video Compliance
SMPTE 2110-20 (Uncompressed Video)	IGMP v2	Precision Time Protocol	IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
SMPTE 2110-21 (Traffic Shaping)	Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous	NMOS IS-04 Discovery and Registration	v1.3.2 Peer-to-peer via mDNS/DNS‑SD
SMPTE 2110-30 (PCM)	Audio Conformance level: Level C	NMOS IS-05 Connection Management	v1.1.2
SMPTE 2110-40 (Ancillary Data)	Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.	NMOS BCP-002-01	Natural Grouping
Codec	Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.	NMOS BCP-004-01	Receiver capabilities

LED Indicators	1 x IP Input Lock LED indicator light 1 x SDI Input Lock LED indicator light 1 x Tally LED indicator light	Control	Talkback button controls for Volume Up, Volume Down and Push to Talk.
Talkback and Tally
Talkback	5‑pin XLR talkback headset connection for talkback on channels 15/16 in the SDI and 2110 IP video	Live Tally Indicator	Tally LED indicator light
Power Requirements
Power Supply	1 x +12V DC external universal power supply with locking 5.5mm barrel Jack plus international socket adapters for most countries. 1 x RJ45 Ethernet connector for power from PoE++ power supplies.	Operational Voltage Range Power Usage	12 – 16 V 18W
