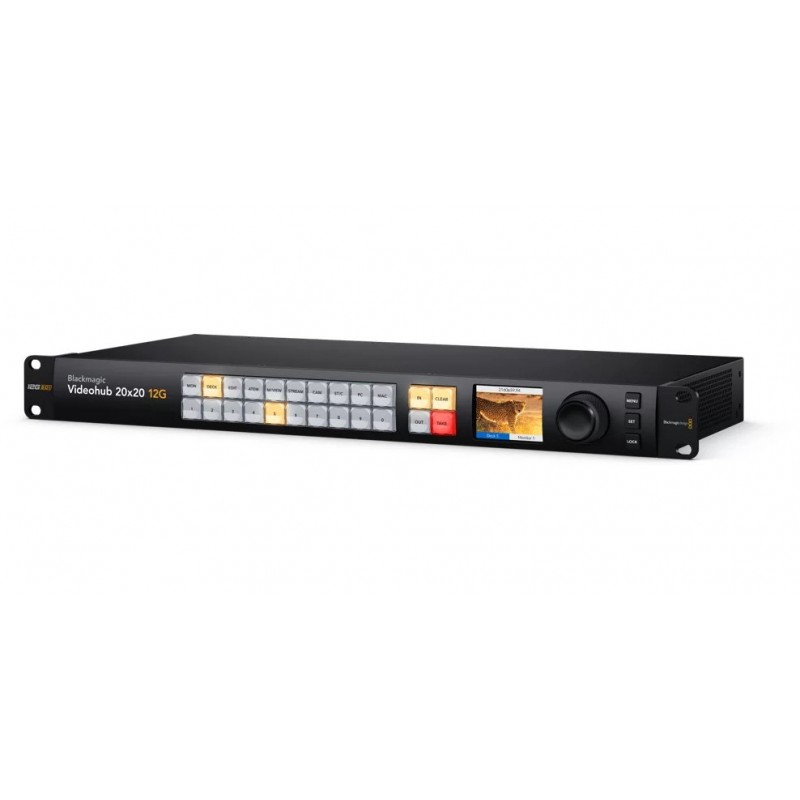

Blackmagic Videohub 20×20 12G

Id 159663

Бренд Blackmagic

Рейтинг

Equipment, Live Broadcast Equipment, Video Equipment

2 637,00 €

С НДС Доставка в течение 7-21 день.

2179.34 без НДС.

Количество

Описание
Подробнее о товаре

Отзывы

Описание

SDI Video Inputs	20	SDI Reclocking	On all SDI outputs
SDI Video Outputs	20	Reference Inputs	Tri-Sync or Black Burst
SDI Rates	DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G	Reference Outputs	Reference terminating loop output
Video Input Re-Sync	None	Ethernet	Suppopt 10/100/1000 BaseT
		Computer Interface	USB‑C
Standards
SD Video Standards	525i59.94 NTSC, 625i50 PAL	SDI Compliance	SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601
HD Video Standards	720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23,98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30	SDI Audio Sampling	Television standard sample rate of 48kHz and 24-bit
2K Video Standards	2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI	SDI Video Sampling	YUV 4:2:2 and RGB 4:4:4
Ultra HD Video Standards	2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60	SDI Color Precision	10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes
4K Video Standards	4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI	SDI Color Space	REC 601, REC 709, REC 2020
		SDI Auto Switching	Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD-SDI, 6G HD‑SDI, 12G‑SDI and DVB‑ASI on each input so that each input can be running a different television standard
		SDI Metadata Support	Video payload identification ancillary data as per SMPTE 352M
Control
Built in Control Panel	24 buttons for local control of Videohub with 3 buttons and search dial for menu control. 2.2 inch color display	External Control Panel	Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol
		Control Panel Connection	Ethernet
Software
Software Control	Router control included free for Windows™ and Mac™	Internal Software Upgrade	Via included updater application
Display
Displays	Built in 2.2 inch LCD for video and menu settings
Power Requirements
Power Supply	1 x Internal 100 – 240V AC 50/60Hz. IEC power cable required	Power Fail Protection	Crosspoint connections preserved and restored instantly at power on
		Power Usage	27.5 W max
Physical Installation	1 rack unit height
Physical Specifications	482 x 236.14 x 44.2 mm	Weight	3.6 kg
