Overview
The Yamaha SWR switch lineup, featuring high-performance L2 switches for fixed installations, has been expanded to provide a wider range of models for a wider range of applications. In addition to VLAN functionality, the new SWR2310-28GT and SWR2310-18GT offer high port counts and features such as 10G uplink ports for long-distance transmission of multichannel 96 kHz data, making them ideal choices for safe, stable backbone operation in large-scale systems. As with other SWR/SWP switches, Yamaha LAN Monitor software provides clear visual system status monitoring that makes Dante system setup easy.

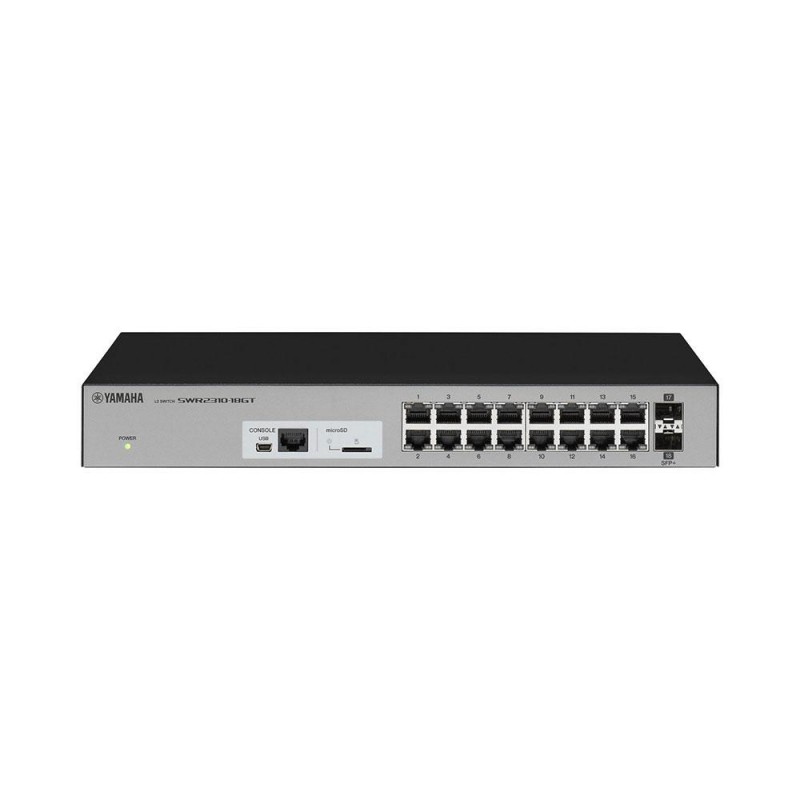

L2 intelligent RJ45 switch with 18 ports
10Gbps Supported Multi-port Models for Solid Backbone Performance
With high port counts and 10G uplink ports that can be used to transfer multichannel 96 kHz data over extended distances, the SWR2310-28GT and SWR2310-18GT switches have been designed to support safe, stable network operation in system backbone applications. Optional SFP-SWRT-SR and SFP-SWRT-LR small form-factor pluggable modules allow reliable long-distance communication of multiple channels of 96 kHz audio data, up to a maximum of 10 kilometers with the SFP-SWRT-LR, significantly enhancing performance, dependability, and flexibility for commercial installations, theaters, stadiums, and other large-scale installations.
One-click Dante Optimization
IGMP and QoS settings for SWR series switches can be automatically optimized for Dante network operation by simply clicking the “Dante optimization” button in the web-based GUI. These network settings are not critical in simple systems, but proper configuration is essential to ensure maximum stability in larger Dante networks.
Intelligent Security Management
Augmenting the VLAN functionality included in the SWR2310 series is built-in RADIUS server function. By setting up one switch as a RADIUS server and linking other switches to it, unauthorized network access can be effectively blocked for enhanced security, even in complex large-scale installations. Device authentication can be set up quickly and easily via a web-based GUI.
Network Visibility and Smart Management (Yamaha LAN Monitor)
Effective Dante network management hinges on a range of parameters such as network traffic, switch status, and individual Dante device information. The dedicated Yamaha LAN Monitor computer application provides a comprehensive single-screen view of all necessary parameters when used with SWP/SWR series switches. We refer to this type of graphical overview as “network visbility.” You can even take a snapshot of the normal network status and set an alarm to warn you if any of the parameters changes, so that problems can be identified and resolved quickly and easily. The Dante Controller application can also be launched from the Yamaha LAN Monitor with a single click, providing a total Dante network solution on a single computer.
Specifications
| LAN ports | Standard | IEEE 802.3 (10BASE-T/100BASE-TX/1000BASE-T) |
| Number of ports | 16 | |
| Communication mode | Auto negotiation | |
| Connector type | RJ-45 | |
| Polarity | Automatic detection of straight/cross, or fixed at straight | |
| SFP+ ports | Standard | IEEE 802.3z (1000BASE-SX/ 1000BASE-LX), IEEE 802.3ae (10GBASE-SR/ 10GBASE-LR) |
| Number of ports | 2 | |
| SFP ports | Standard | - |
| Number of ports | - | |
| Console ports | Standard | RS-232C, USB 2.0 |
| Connector type | RJ-45, USB mini-B (5-pin) | |
| Data transmission speed | 9600 bit/s | |
| microSD slot | Standard | microSD/microSDHC (microSDXC is not supported) |
| File System | FAT/FAT32 | |
| Indicators | POWER, microSD, LAN port (LINK/ACT, SPEED), SFP+ port (LINK/ACT, SPEED) | |
| MAC address | Indicated in product label on top panel of unit | |
| Operating environment | Ambient temperature: 0–50 °C, Ambient humidity 15–80% (non-condensing) | |
| Storage environment | Ambient temperature: -20–60 °C, Ambient humidity 10–90% (non-condensing) | |
| Power supply voltage, frequency | AC100 – 240V, 50/60 Hz | |
| Maximum power consumption | 19.0 W | |
| Dimensions | W | 330 mm |
| H | 43.5 mm | |
| D | 200 mm | |
| Weight | 2.1 kg | |
| Accessories | Owner's manual, power cord (3-prong), power cord clamp, legs, 19-inch rack mount hardware and screws | |
